SKU 42-96000

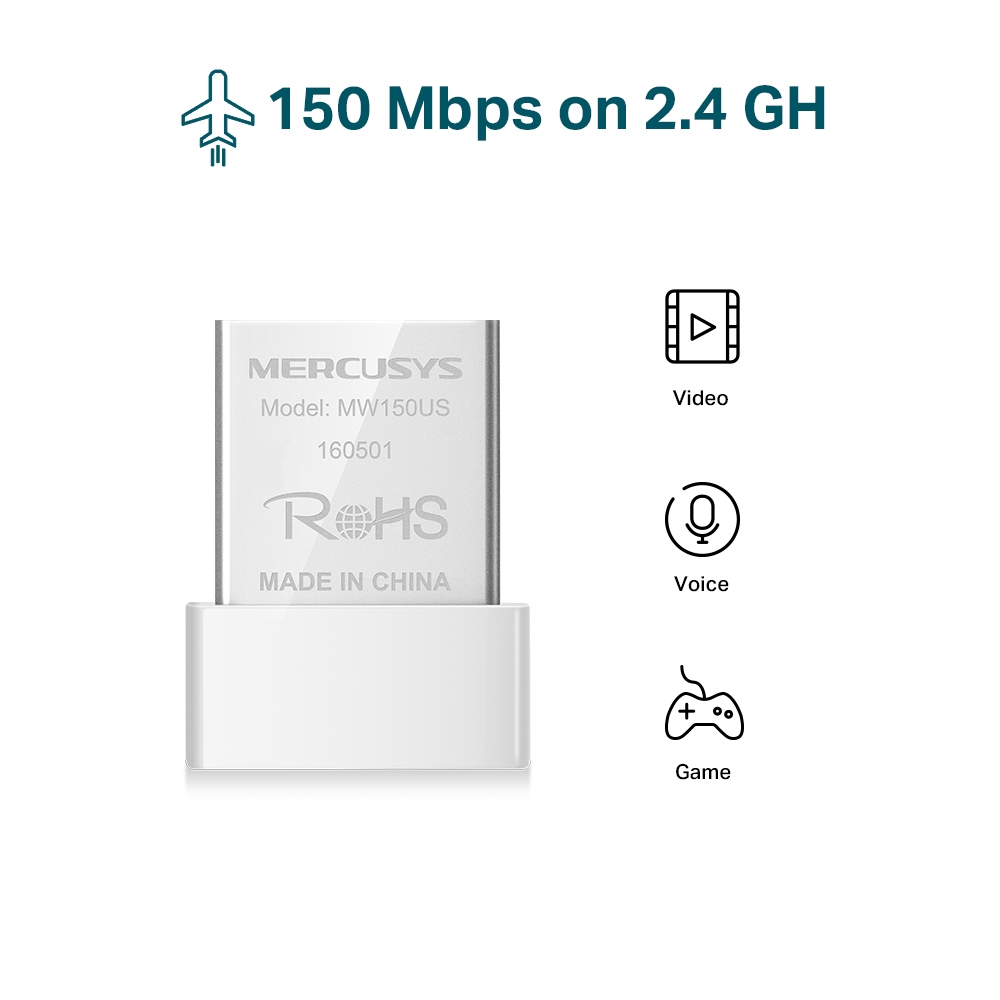

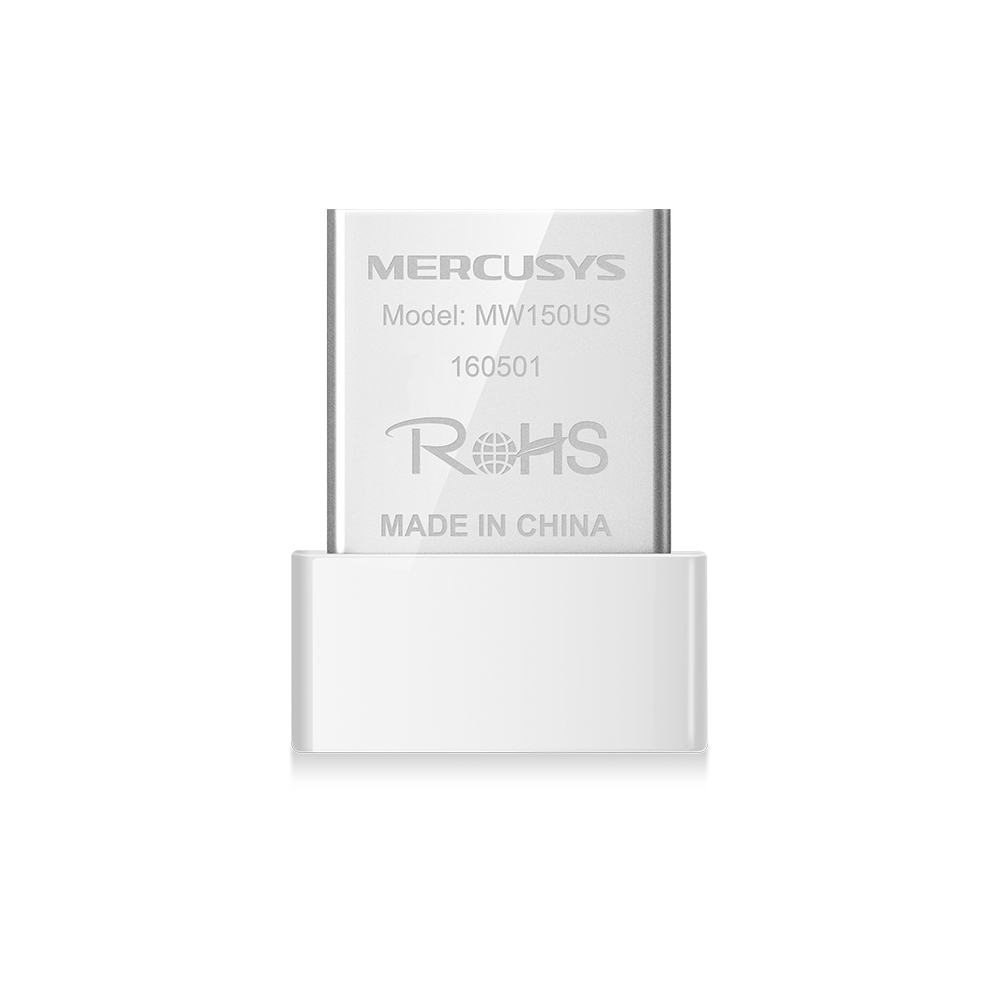

Nano scheda Wireless N150 USB

• Soluzione compatta e conveniente per rendere wireless i tuoi dispositivi
• Ideale per applicazioni semplici come navigazione Internet, invio email, e chat
• Supporta Windows 10/8.1/8/7/XP (32/64bit)

Wireless

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400 - 2.4835GHz

Signal Rate

11n: Up to 150Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Transmission Power

<20dBm

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Hardware

Dimensioni (W X D X H)

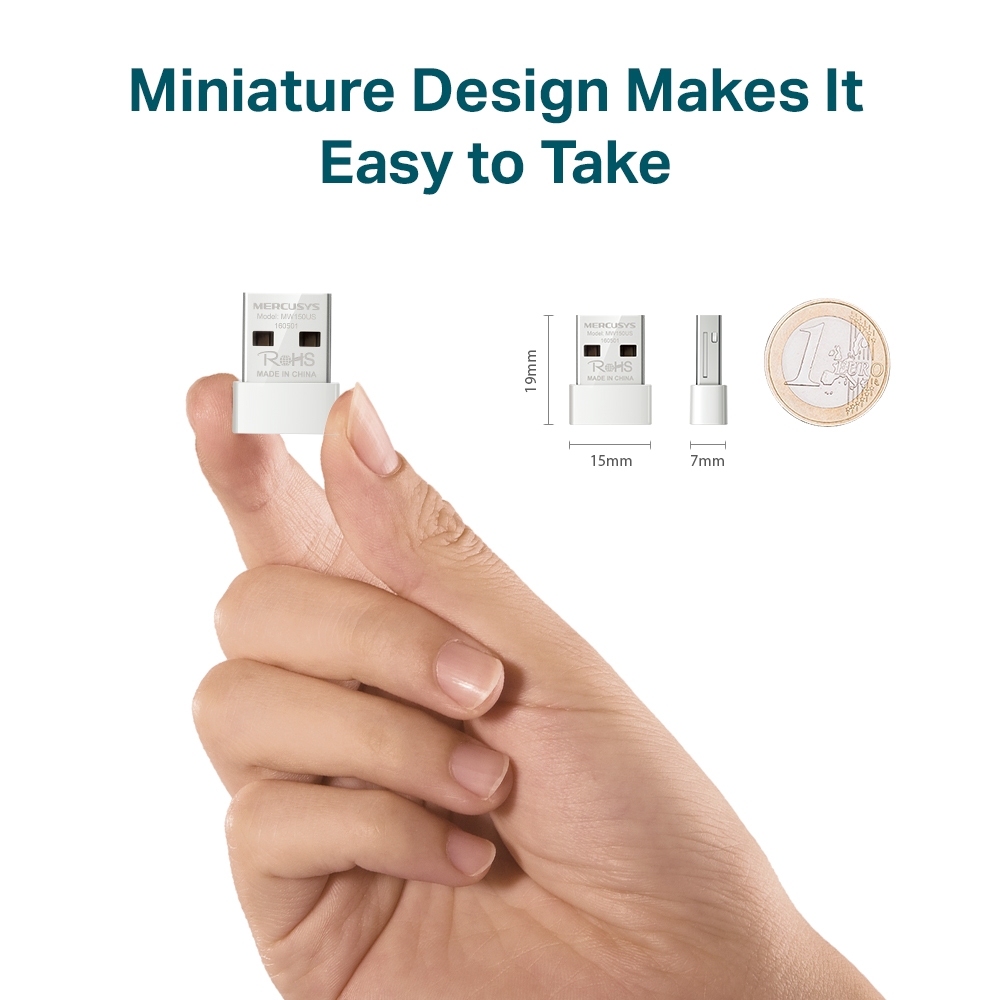

0.74 × 0.58 × 0.27 in. (18.9 × 14.8 × 6.85 mm)

Interfaces

USB 2.0

Tipologia di Antenna

Internal

Other

Certifications

CE, ROHS

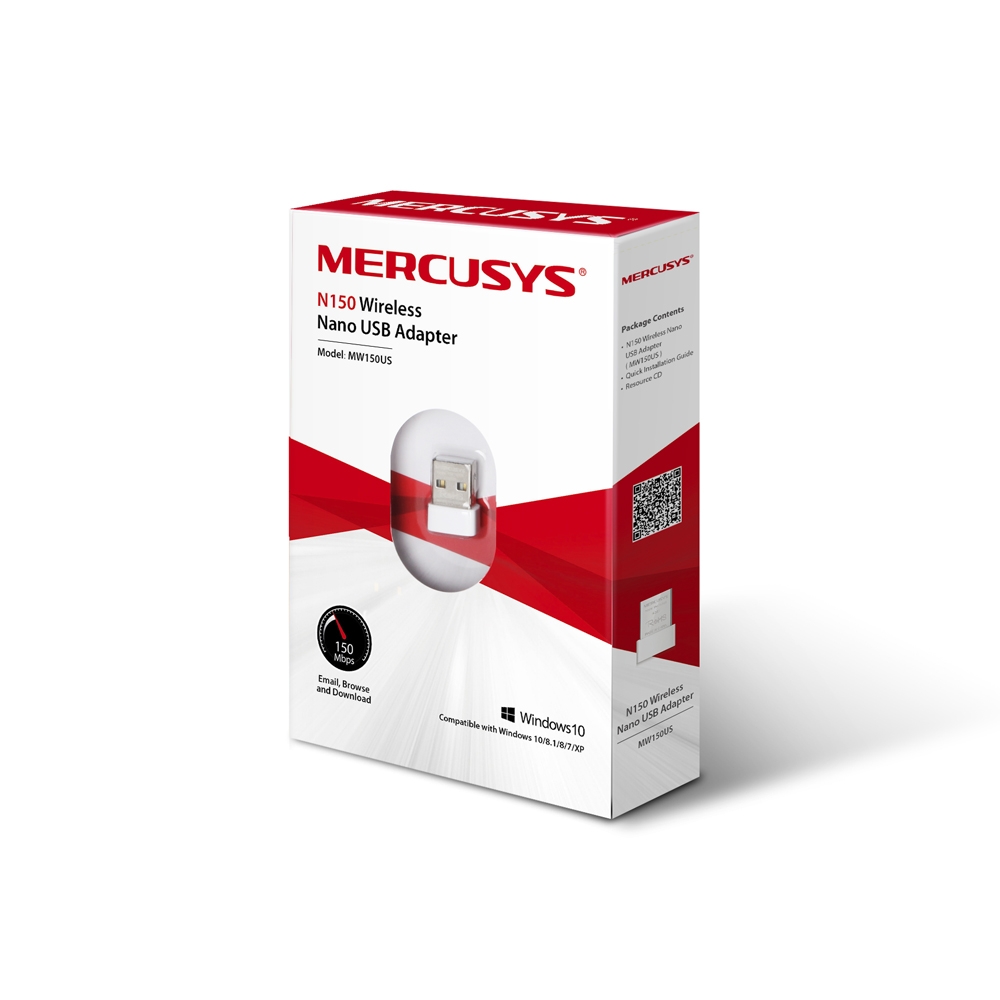

Package Contents

N150 Wireless Nano USB Adapter

MW150US

Quick installation guide

Resource CD

Environment

Operating temperature: 0°C ~40°C (32°F ~104°F)

Storage temperature: -40°C~70°C (-40°F~158°F)

Operating humidity: 10%~ 90% non-condensing

Storage humidity: 5%~90% non-condensing

System Requirements

Windows 8.1/8/7/XP (32/64bit)

• MS-MW150US_Datasheet.pdf
